Thunderbolt
TBTCAM USB TYPE-C® ALT-MODE
TBTCAM-TPA-PRR test fixture kits facilitates host and device compliance testing for TBT and pre-compliance testing for DP and USB modes. TBTCAM allows Device and Host testing by sending Type C Vendor Specific Messages causing DUTs to enter the selected mode.
 |
Model No.TBT-TPA-UHG2Qty. 1 - TBT Gen2.0 uController Kit ．1ea 600-1101-001 Thunderbolt Gen2.0 uController Module ．1ea 420-0001-000 3 ft. USB Type A to B |
Part No.640-0535-000．1ea 420-0003-000 6 ft. NEMA 5-15P Power Cord ．1ea 460-0001-000 12Vdc 40W AC Power Adapter |
 |
Model No.TBTCI-TPA-RQty. 1 - TBTCI Type-C Receptacle Adapter ．1ea – TBT USB Type-C Receptacle Connector ．1ea - 10 Position Thunderbolt Low Speed Connector |
Part No.640-0846-000Qty.1 - AC Power Adapter ．1ea 420-0003-000 6 ft. NEMA 5-15P Power Cord ．1ea 460-0001-000 12Vdc 80W AC Power Adapter
|
 |
Model No.TBTCI-TPA-RRQty. 2 - TBTCI Type-C Receptacle Adapter ．1ea – TBT USB Type-C Receptacle Connector ．1ea - 10 Position Thunderbolt Low Speed Connector |
Part No.640-0848-000Qty.2 - AC Power Adapter．1ea 420-0003-000 6 ft. NEMA 5-15P Power Cord ．1ea 460-0001-000 12Vdc 80W AC Power Adapter |
 |
Model No.TBTCAM-TPA-PQty. 1 - TBTCAM Type-C Plug Adapter ．1ea TBTCAM Plug Connector ．1ea TBTCAM Aux Channel Probe Board ．1ea 10 Position Thunderbolt Low Speed Connector |
Part No.640-0850-000．1ea USB-A 2.0 to Mini USB-B, 1 meter ．1ea Flash Drive with TBTCAM User Software Qty. 1 - AC Power Adapter ．1ea 420-0003-000 6 ft. NEMA 5-15P Power Cord ．1ea 460-0001-000 12Vdc 80W AC Power Adapter |
 |

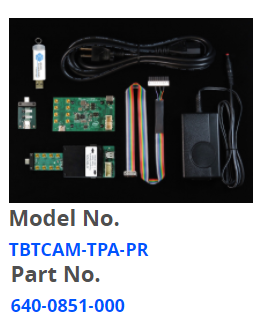

Model No.TBTCAM-TPA-PRQty. 1 - TBTCAM Type-C Plug Adapter ．1ea TBTCAM Plug Connector ．1ea TBTCAM Aux Channel Probe Board ．1ea 10 Position Thunderbolt Low Speed Connector ．1ea USB-A 2.0 to Mini USB-B, 1 meter ．1ea Flash Drive with TBTCAM U |
Part No.640-0851-000Qty. 1 - TBTCI Type-C Receptacle Adapter ．1ea – TBT USB Type-C Receptacle Connector ．1ea - 10 Position Thunderbolt Low Speed Connector Qty. 2 - AC Power Adapter ．1ea 420-0003-000 6 ft. NEMA 5-15P Power Cord ．1ea 460-0001-000 12Vdc 80W AC Power Adapter |
 |

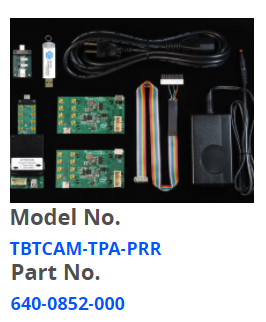

Model No.TBTCAM-TPA-PRRQty. 1 - TBTCAM Type-C Plug Adapter ．1ea TBTCAM Plug Connector ．1ea TBTCAM Aux Channel Probe Board ．1ea 10 Position Thunderbolt Low Speed Connector ．1ea USB-A 2.0 to Mini USB-B, 1 meter ．1ea Flash Drive with TBTCAM User Software |
Part No.640-0852-000Qty. 2 - TBTCI Type-C Receptacle Adapter ．1ea – TBT USB Type-C Receptacle Connector ．1ea - 10 Position Thunderbolt Low Speed Connector Qty. 3 - AC Power Adapter ．1ea 420-0003-000 6 ft. NEMA 5-15P Power Cord ．1ea 460-0001-000 12Vdc 80W AC Power Adapter |
