USB 3.1 TYPE-C® COMPLIANCE KIT High Speed Digital interface Test Fixture

USB 3.1 TYPE-C® COMPLIANCE KIT

The USB 3.1 USB (10 GT/s) Type-C Electrical Test Fixture Set provides a worst case, ISI hardware channel for PHY’s. It is intended to assist compa-nies in testing transmitter signal quality and receiver sensitivity for either hosts or peripherals.

The USB-TPA-PRR test fixture kits facilitate USB host and device compliance testing using our USB TypeC Plug, Receptacle and Low Speed Adapter

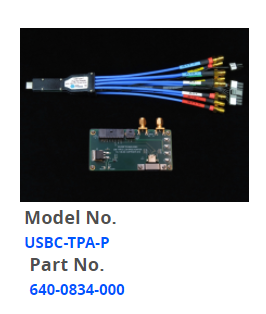

	Model No. USBC-TPA-P Qty. 1 - USBC Type-C Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector ．1 - 2 Position Low Speed Cable and Connector	Part No. 640-0834-000 Qty. 1 - USBC Type-C Low Speed Adapter Board

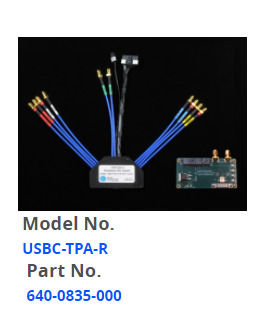

	Model No. USBC-TPA-R Qty. 1 - USBC Type-C Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector ．1 - 2 Position Low Speed Cable and Connector	Part No. 640-0835-000 Qty. 1 - USBC Type-C Low Speed Adapter Board

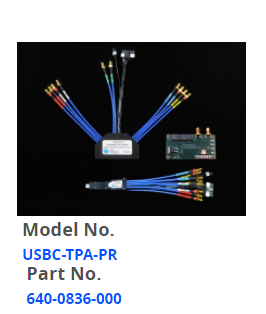

	Model No. USBC-TPA-PR Qty. 1 - USBC Type-C Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector ．1 - 2 Position Low Speed Cable and Connector Qty. 1 - USBC Type-C Low Speed Adapter Board	Part No. 640-0836-000 Qty. 1 - USBC Type-C Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector ．1 - 2 Position Low Speed Cable and Connector

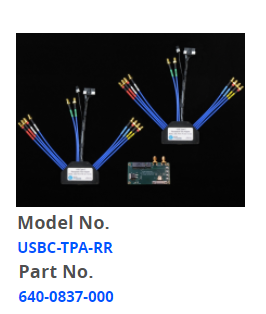

	Model No. USBC-TPA-RR Qty. 2 - USBC Type-C Receptacle Adapter ．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 8 Position Low Speed Cable and Connector ．2 - 2 Position Low Speed Cable and Connector	Part No. 640-0837-000 Qty. 1 - USBC Type-C Low Speed Adapter Board

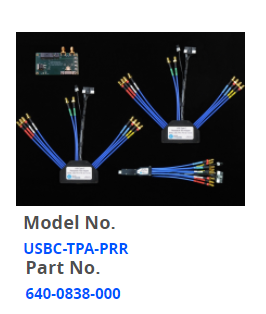

	Model No. USBC-TPA-PRR Qty. 1 - USBC Type-C Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector ．1 - 2 Position Low Speed Cable and Connector Qty. 1 - USBC Type-C Low Speed Adapter Board	Part No. 640-0838-000 Qty. 2 - USBC Type-C Receptacle Adapter ．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 8 Position Low Speed Cable and Connector ．2 - 2 Position Low Speed Cable and Connector

ACE

Model No.

USBC-TPA-P

Part No.

640-0834-000

Model No.

USBC-TPA-R

Part No.

640-0835-000

USBC-TPA-PR

640-0836-000

USBC-TPA-RR

640-0837-000

USBC-TPA-PRR

640-0838-000
