HDMI TYPE-A V2.0 High Speed Digital interface Test Fixture

HDMI

HDMI TYPE-A V2.0

The HDMIA-TPA-PRRE test adapter kit or test fixture kit facilitate HDMI Source and Sink compliance testing. The fixture kit also facilitates HDMI cable testing.

	Model No. HDMI-TPA-T Qty. 1 - HDMI Termination Module Qty. 1 - 3FT USB Type-A to Type-B Cable (p/n 420-0001-000)	Part No. 640-0408-000
	Model No. HDMIA2-TPA-P Qty. 1 - HDMI Type-A 2.0 Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector	Part No. 640-0770-000 ．Adapter Cable, HEAC to E-EDID (415-0028-000)
	Model No. HDMIA2-TPA-12P ．Qty. 1 - HDMI Type-A 2.0 Plug Adapter ．10 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ．1 - 8 Position Low Speed Cable and Connector	Part No. 640-0770-200 ．Adapter Cable, HEAC to E-EDID (415-0028-000) ．SMA Adapter, Female to Female (430-0152-000)

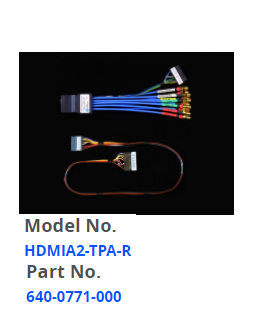

	Model No. HDMIA2-TPA-R Qty. 1 - HDMI Type-A 2.0 Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector	Part No. 640-0771-000
	Model No. HDMIA2-TPA-12R Qty. 1 - HDMI Type-A 2.0 Receptacle Adapter ．10 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ．1 - 8 Position Low Speed Cable and Connector	Part No. 640-0771-200
	Model No. HDMIA2-TPA-E Qty. 1 - HDMI Type-A E-EDID PCB ．1 - HDMI E-EDID PROM	Part No. 640-0773-000 ．Adapter Cable, HEAC to E-EDID (415-0028-000)

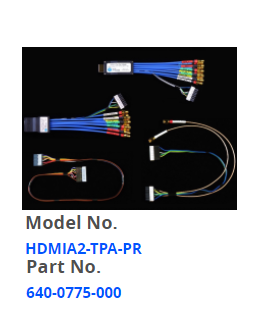

	Model No. HDMIA2-TPA-PR Qty. 1 - HDMI Type-A 2.0 Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector	Part No. 640-0775-000 Qty. 1 - HDMI Type-A 2.0 Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Adapter Cable, HEAC to E-EDID (415-0028-000)

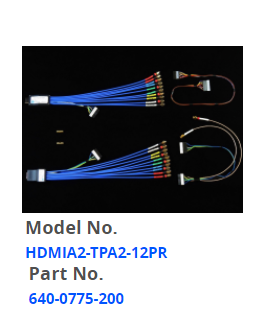

	Model No. HDMIA2-TPA2-12PR Qty. 1 - HDMI Type-A 2.0 Plug Adapter ．10 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ． - 8 Position Low Speed Cable and Connector	Part No. 640-0775-200 Qty. 1 - HDMI Type-A 2.0 Receptacle Adapter ．10 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ．1 - 8 Position Low Speed Cable and Connector Adapter Cable, HEAC to E-EDID (415-0028-000) SMA Adapter, Female to Female (430-0152-000)
	Model No. HDMIA2.1-TPA-RR Qty. 1 - HDMI Type-A 2.0 Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector	Part No. 640-0777-000 Qty. 2 - HDMI Type-A 2.0 Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Adapter Cable, HEAC to E-EDID (415-0028-000)

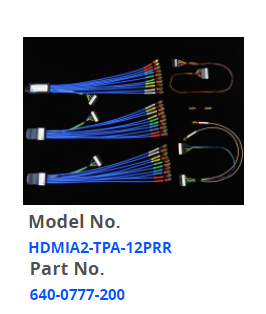

	Model No. HDMIA2-TPA-12PRR Qty. 1 - HDMI Type-A 2.0 Plug Adapter ．10 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ．1 - 8 Position Low Speed Cable and Connector	Part No. 640-0777-200 Qty. 2 - HDMI Type-A 2.0 Receptacle Adapter ．10 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ．1 - 8 Position Low Speed Cable and Connector Adapter Cable, HEAC to E-EDID (415-0028-000) SMA Adapter, Female to Female (430-0152-000)
	Model No. HDMIA2-TPA-12PRR Qty. 2 - HDMI Type-A 2.0 Receptacle Adapters ．16 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 8 Position Low Speed Cable and Connector	Part No. 640-0780-000

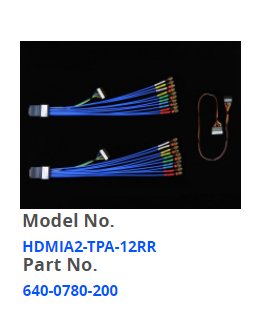

	Model No. HDMIA2-TPA-12RR Qty. 2 - HDMI Type-A 2.0 Receptacle Adapters ．16 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ．2 - 8 Position Low Speed Cable and Connector	Part No. 640-0780-200
	Model No. HDMIA2-TPA-PRRT Qty. 1 - HDMI Type-A 2.0 Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Qty. 1 - HDMI Termination Board Qty. 1 - 3FT USB Type-A to Type-B Cable (p/n 420-0001-000)	Part No. 640-0782-000 Qty. 2 - HDMI Type-A 2.0 Receptacle Adapters ．16 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 8 Position Low Speed Cable and Connector ．Adapter Cable, HEAC to E-EDID (415-0028-000)
	Model No. HDMI-EDID-EM Qty. 1 - HDMI EDID Source Emulator Module 3FT USB Type-A to Type-B Cable (p/n 420-0001-000)	Part No. 640-0905-100 USB Flash Drive with HDMI EDID Emulator Software
	Model No. HDMI-EDID-EMS Qty. 1 - HDMI EDID Source Emulator Module 3FT USB Type-A to Type-B Cable (p/n 420-0001-000)	Part No. 640-0906-100 USB Flash Drive with HDMI EDID Emulator Software
	Model No. HDMI-EDID-EMSS Qty. 1 - HDMI EDID Emulator Module 3FT USB Type-A to Type-B Cable (p/n 420-0001-000)	Part No. 640-0907-100 USB Flash Drive with HDMI EDID Emulator Software
	Model No. HDMI-EDID-EMSI Software to upgrade from a HDMI-EDID-EMS to a HDMI-EDID-EMSS, adds the Sink emulating software	Part No. 640-0908-000
	Model No. HDMI-EDID-EMSO Software to upgrade from a HDMI-EDID-EM to a HDMI-EDID-EMSS, adds the Source emulating software	Part No. 640-0909-000
