DISPLAYPORT™ USB TYPE-C® ®

The DPC-TPA-PRRCB test fixture kits facilitate DPC host and device compliance testing using our DPC Plug, Receptacle and Control Board.

	Model No. DPC-TPA-P Qty. 1 - Display Port Type-C Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs	Part No. 640-0800-000 ．1 - 8 Position Low Speed Cable and Connector ．1 - 2 Position Low Speed Cable and Connector
	Model No. DPC-TPA-R Qty. 1 - Display Port Type-C Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs	Part No. 640-0801-000 ．1 - 8 Position Low Speed Cable and Connector ．1 - 2 Position Low Speed Cable and Connector

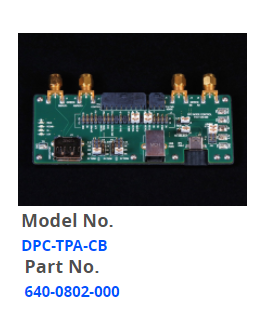

	Model No. DPC-TPA-CB Qty. 1 - Display Port Type-C Control Board	Part No. 640-0802-000
	Model No. DPC-TPA-PR Qty. 1 - Display Port Type-C Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector ．1 - 2 Position Low Speed Cable and Connector	Part No. 640-0803-000 Qty. 1 - Display Port Type-C Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector ．1 - 2 Position Low Speed Cable and Connector
	Model No. DPC-TPA-PRCB Qty. 1 - Display Port Type-C Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector ．1 - 2 Position Low Speed Cable and Connector Qty. 1 - Display Port Type-C Control Board	Part No. 640-0804-000 Qty. 1 - Display Port Type-C Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector ．1 - 2 Position Low Speed Cable and Connector

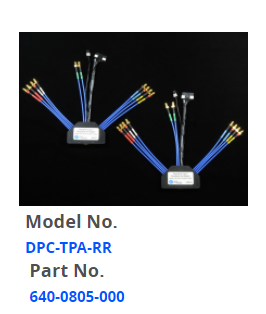

	Model No. DPC-TPA-RR Qty. 2 - Display Port Type-C Receptacle Adapter ．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs	Part No. 640-0805-000 ．2 - 8 Position Low Speed Cable and Connector ．2 - 2 Position Low Speed Cable and Connector

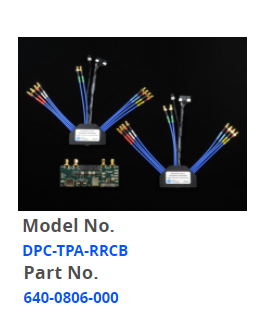

	Model No. DPC-TPA-RRCB Qty. 2 - Display Port Type-C Receptacle Adapter ．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 8 Position Low Speed Cable and Connect ．2 - 2 Position Low Speed Cable and Connector	Part No. 640-0806-000 Qty. 1 - Display Port Type-C Control Board

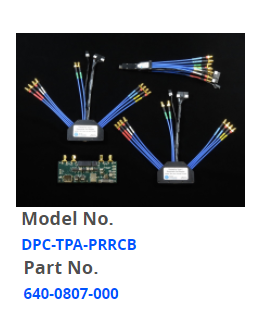

	Model No. DPC-TPA-PRRCB Qty. 1 - Display Port Type-C Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector ．1 - 2 Position Low Speed Cable and Connector Qty. 1 - Display Port Type-C Control Board	Part No. 640-0807-000 Qty. 2 - Display Port Type-C Receptacle Adapter ．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 8 Position Low Speed Cable and Connector ．2 - 2 Position Low Speed Cable and Connector
	Model No. DPC-TPA-PCB Qty. 1 - Display Port Type-C Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector ．1 - 2 Position Low Speed Cable and Connector	Part No. 640-0808-000 Qty. 1 - Display Port Type-C Control Board
