 HDMI TYPE-D V2.0

The HDMID2-TPA-PRR test adapter or test fixture kit facilitate HDMI CTS Source and Sink compliance testing. The fixture kit also facilitates HDMI-D 2.0 cable testing.

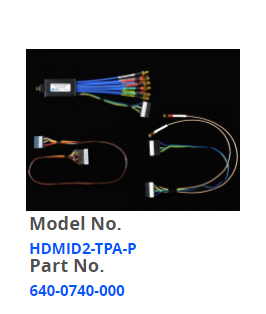

HDMID2-TPA-P

Model No.

HDMI-TPA-P

Qty. 1 - HDMI Type-D 2.0 Plug Adapter

．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs

Part No.

640-0740-000

．Adapter Cable, HEAC to E-EDID (415-0028-000)

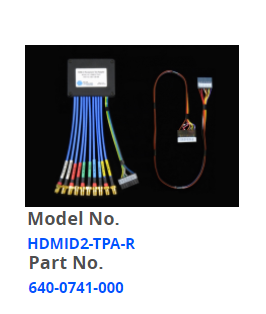

HDMID2-TPA-R

Model No.

HDMID2-TPA-R

Qty. 1 - HDMI Type-D 2.0 Receptacle Adapter

．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs

Part No.

640-0741-000

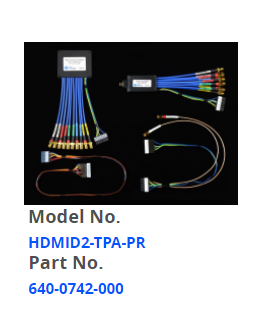

HDMID2-TPA-PR

Model No.

HDMID2-TPA-PR

Qty. 1 - HDMI Type-D 2.0 Plug Adapter

．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs

Part No.

640-0014-000

Qty. 1 - HDMI Type-D 2.0 Receptacle Adapter
．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs


．Adapter Cable, HEAC to E-EDID (415-0028-000)

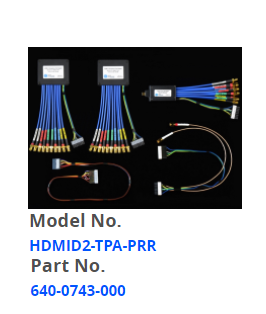

HDMID2-TPA-PRR

Model No.

HDMID2-TPA-PRR

Qty. 1 - HDMI Type-D 2.0 Plug Adapter

．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
．1 - 8 Position Low Speed Cable and Connector

Part No.

640-0743-000

Qty. 2 - HDMI Type-D 2.0 Receptacle Adapters
．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
．2 - 8 Position Low Speed Cable and Connector


．Adapter Cable, HEAC to E-EDID (415-0028-000)

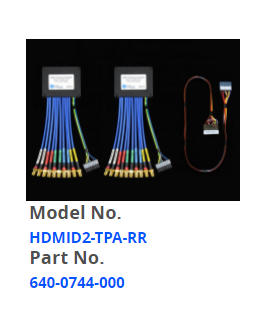

HDMID2-TPA-RR

Model No.

HDMID2-TPA-RR

Qty. 2 - HDMI Type-D 2.0 Receptacle Adapters

．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
．2 - 8 Position Low Speed Cable and Connector



Part No.

640-0744-000

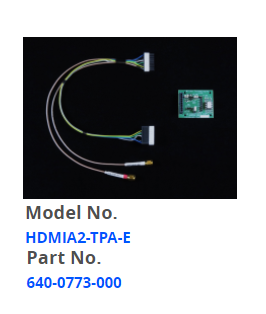

HDMIA2-TPA-E

Model No.

HDMIA2-TPA-E

Qty. 1 - HDMI Type-A E-EDID PCB

．1 - HDMI E-EDID PROM


Part No.

640-0773-000

．Adapter Cable, HEAC to E-EDID (415-0028-000)

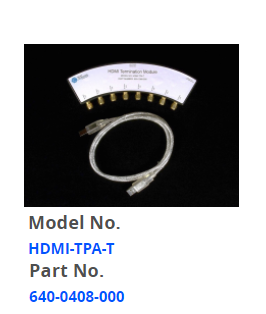

HDMI-TPA-T

Model No.

HDMI-TPA-T

Qty. 1 - HDMI Termination Module

Qty. 1 - 3FT USB Type-A to Type-B Cable (p/n 420-0001-000)

Part No.

640-0408-000
HDMI-EDID-EM Model No.

HDMI-EDID-EM

Qty. 1 - HDMI EDID Sink Emulator Module

．3FT USB Type-A to Type-B Cable (p/n 420-0001-000)

 		Part No.

640-0905-100

．USB Flash Drive with HDMI EDID Emulator Software
HDMI-EDID-EMS Model No.

HDMI-EDID-EMS

Qty. 1 - HDMI EDID Source Emulator Module

3FT USB Type-A to Type-B Cable (p/n 420-0001-000)

 		Part No.

640-0906-100

USB Flash Drive with HDMI EDID Emulator Software
HDMI-EDID-EMSS Model No.

HDMI-EDID-EMSS

Qty. 1 - HDMI EDID Emulator Module

3FT USB Type-A to Type-B Cable (p/n 420-0001-000)

 		Part No.

640-0907-100

USB Flash Drive with HDMI EDID Emulator Software

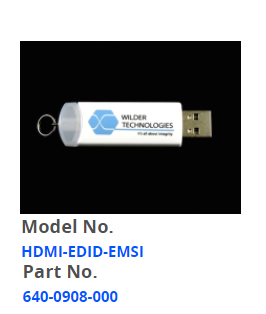

HDMI-EDID-EMSI Model No.

HDMI-EDID-EMSI

Software to upgrade from a HDMI-EDID-EMS to a HDMI-EDID-EMSS, adds the Sink emulating software

 		Part No.

640-0908-000

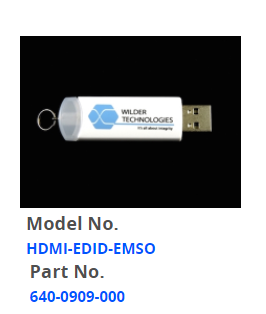

HDMI-EDID-EMSO Model No.

HDMI-EDID-EMSO

Software to upgrade from a HDMI-EDID-EM to a HDMI-EDID-EMSS, adds the Source emulating software



 		Part No.

640-0909-000
