THUNDERBOLT (GEN2)
The TBT-TPA-PRR test adapter kit or test fixture kit facilitate Thunderbolt Source and Sink compliance testing. The fixture kit also facilitates Thunderbolt cable testing.
 |
Model No.TBT-TPA-PQty. 1 - Thunderbolt Plug Adapter ．8 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs |
Part No.640-0500-100．1 - 10 Position Low Speed Cable and Connector ．1 - 3 Position Power Sense Cable and Connector |
 |
Model No.TBTCI-TPA-RQty. 1 - Thunderbolt Receptacle Adapter ．8 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs |
Part No.640-0501-100．1 - 10 Position Low Speed Cable and Connector ．1 - 3 Position Power Sense Cable and Connector
|
 |
Model No.TBT-TPA-PRQty. 1 - Thunderbolt Plug Adapter ．8 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 10 Position Low Speed Cable and Connector ．1 - 3 Position Power Sense Cable and Connector |
Part No.640-0509-100Qty. 1 - Thunderbolt Receptacle Adapter．8 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 10 Position Low Speed Cable and Connector ．1 - 3 Position Power Sense Cable and Connector |
 |
Model No.TBT-TPA-PRRQty. 1 - Thunderbolt Plug Adapter ．8 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 10 Position Low Speed Cable and Connector ．1 - 3 Position Power Sense Cable and Connector |
Part No.640-0513-100Qty. 2 - Thunderbolt Receptacle Adapters ．16 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 10 Position Low Speed Cable and Connector ．2 - 3 Position Power Sense Cable and Connector |
 |
Model No.TBT-TPA-RRQty. 2 - Thunderbolt Receptacle Adapters ．16 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs |
Part No.640-0519-100．2 - 10 Position Low Speed Cable and Connector ．2 - 3 Position Power Sense Cable and Connectorr |
 |
Model No.TBT-TPA-ERQty. 1 - Thunderbolt Enhanced Receptacle Adapter ．8 - High Performance Phase Aligned 3" Adapter Coaxial Cables w/ Female SMAs |
Part No.640-0532-000．1 - 10 Position Low Speed Cable and Connector ．1 - 3 Position Power Sense Cable and Connector |
 |
Model No.TBT-TPA-ERERQty. 2 - Thunderbolt Enhanced Receptacle Adapters ．16 - High Performance Phase Aligned 3" Adapter Coaxial Cables w/ Female SMAs |
Part No.640-0533-000．2 - 10 Position Low Speed Cable and Connector ．2 - 3 Position Power Sense Cable and Connector |
 |
Model No.TBT-TPA-CPCQty. 1 - TBT CPC Kit ．1ea 600-1091-100 Thunderbolt Cable Power Controller Module ．1ea 420-0001-000 3 ft. USB Type A to B |
Part No.640-0534-001．1ea 420-0003-000 6 ft. NEMA 5-15P Power Cord ．1ea 460-0003-000 9Vdc 45W AC Power Adapter |
 |
Model No.TBT-TPA-UHG2Qty. 1 - TBT Gen2.0 uController Kit ．1ea 600-1101-001 Thunderbolt Gen2.0 uController Module ．1ea 420-0001-000 3 ft. USB Type A to B |
Part No.640-0535-000．1ea 420-0003-000 6 ft. NEMA 5-15P Power Cord ．1ea 460-0001-000 12Vdc 40W AC Power Adapter |
 |
Model No.TBT-PC-UQty. 1 - Thunderbolt P1/P20 Monitoring Coupon, Up (p/n 110-1118-001) |
Part No.640-0536-000 |
 |
Model No.TBT-PC-BQty. 1 - Thunderbolt P1/P20 Monitoring Coupon, Bottom (p/n 110-1118-101) |
Part No.640-0537-000 |
 |

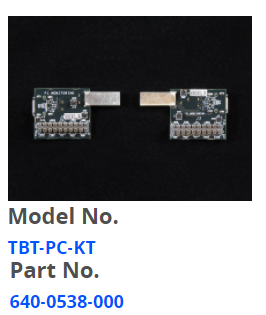

Model No.TBT-PC-KTQty. 1 - Thunderbolt P1/P20 Monitoring Coupon, Up (p/n 110-1118-001) |
Part No.6640-0538-000Qty. 1 - Thunderbolt P1/P20 Monitoring Coupon, Bottom (p/n 110-1118-101) |
 |
Model No.TBTCI-TPA-PQty. 1 - TBTCI Type-C Plug Adapter ．1 - USB Type-C Plug Connector ．8 - High Performance male SMP connectors ．1 - 10 Position Thunderbolt Low Speed Connector ．1 - 20 Position Mini DisplayPort Connector |
Part No.640-0845-000Qty. 1 - AC Power Adapter ．1ea 420-0003-000 6 ft. NEMA 5-15P Power Cord ．1ea 460-0001-000 12Vdc 40W AC Power Adapter |
