DUTC TYPE-C


Wilder DUTC + Type C-P solution enables our users to do Alt-Mode Type-C testing by selected modes and carry out electrical validation without having to change TPA configuration.

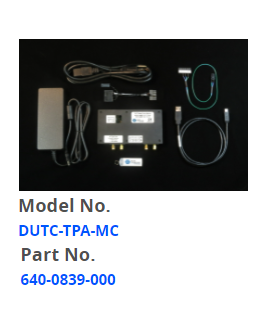

DUTC-TPA-MC

Model No.

DUTC-TPA-MC

Qty. 1 - Final Assy, DUTC (DisplayPort, USB, Thunderbolt, Mode Control)

Qty. 1 - 10 Pos to 3 Pos, Female, Micro-fit, DUTC to Controller

Qty. 1 - Type-C TPA, 14-Pos Male to 8-Pos Fem Microfit

Qty. 1 - Pwr Cord, NEMA 5-15P to Intnl Fem C13 Straight, 6.66Ft

Part No.

640-0839-000

Qty. 1 - USB 2.0, USB-A Plug to USB-B Mini, 1 Meter

Qty. 1 - Pwr Sply, Unv, 80W, 12Vdc, 6.67A, C14 Input, 2.5 x 5.5 x 11

Qty. 1 - Flash Drive with DUTC User Software

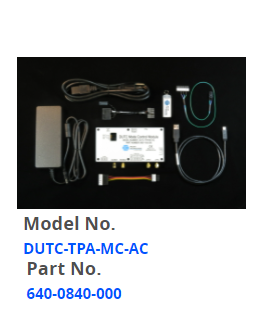

DUTC-TPA-MC-AC

Model No.

DUTC-TPA-MC-AC

Qty. 1 - Final Assy, DUTC (DisplayPort, USB, Thunderbolt, Mode Control, Aux Controller)

Qty. 1 - 10 Pos to 3 Pos, Female, Micro-fit, DUTC to Controller

Qty. 1 - Type-C TPA, 14-Pos Male to 8-Pos Fem Microfit

Qty. 1 - Pwr Cord, NEMA 5-15P to Intnl Fem C13 Straight, 6.66Ft






Part No.

640-0840-000

Qty. 1 - USB 2.0, USB-A Plug to USB-B Mini, 1 Meter

Qty. 1 - Pwr Sply, Unv, 80W, 12Vdc, 6.67A, C14 Input, 2.5 x 5.5 x 11

Qty. 1 - Flash Drive with DUTC User Software

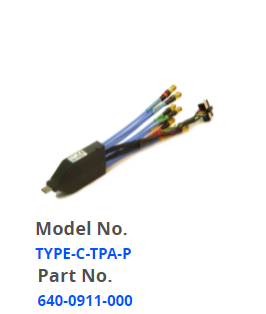

TYPE-C-TPA-P Model No.

USBC-TPA-PR

Qty. 1 - Type-C Plug Without Control Board



Part No.

640-0911-000

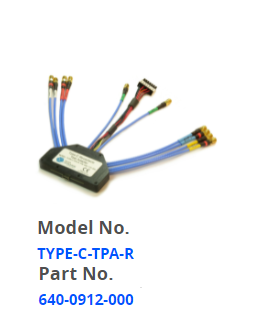

TYPE-C-TPA-R Model No.

TYPE-C-TPA-R

Qty. 1 - Type-C Receptacle Without Control Board


Part No.

640-0912-000
