HDMI
HDMI TYPE-A V2.1
The HDMIA2.1-TPA-PPRT test adapters is used for the HDMI 2.1 CTS Source (TX), Sink (RX), and Cat2/Cat3 Cable testing.
 |
Model No.HDMI-TPA-TQty. 1 - HDMI Termination Module Qty. 1 - 3FT USB Type-A to Type-B Cable (p/n 420-0001-000) |
Part No.640-0408-000 |
 |
Model No.HDMIA2.1-TPA-PQty. 1 - HDMI Type-A 2.1 Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector |
Part No.640-0860-000．Cable Assy, Adapter, HDMI-A HEAC to EDID (415-0028-000)
|
 |

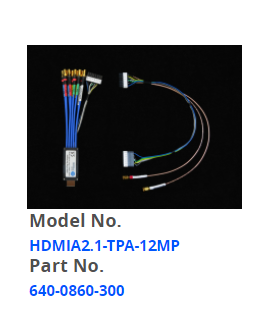

Model No.HDMIA2.1-TPA-12MP．Qty. 1 - HDMI Type-A 2.1 Plug Adapter ．10 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ．1 - 8 Position Low Speed Cable and Connector |
Part No.640-0860-300．Cable Assy, Adapter, HDMI-A HEAC to EDID (415-0028-000) |
 |

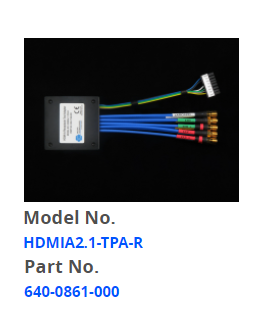

Model No.HDMIA2.1-TPA-RQty. 1 - HDMI Type-A 2.1 Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector |
Part No.640-0861-000 |
 |

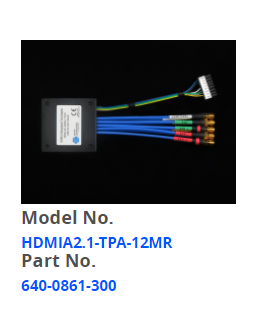

Model No.HDMIA2.1-TPA-12MRQty. 1 - HDMI Type-A 2.1 Receptacle Adapter ．10 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ．1 - 8 Position Low Speed Cable and Connector |
Part No.640-0861-300 |
 |

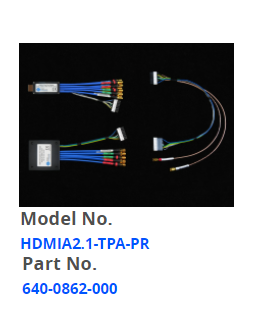

Model No.HDMIA2.1-TPA-PRQty. 1 - HDMI Type-A 2.1 Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Cable Assy, Adapter, HDMI-A HEAC to EDID (415-0028-000) |
Part No.640-0862-000Qty. 1 - HDMI Type-A 2.1 Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector
|
 |
Model No.HDMIA2.1-TPA-12MPRQty. 1 - HDMI Type-A 2.1 Plug Adapter ．10 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ．1 - 8 Position Low Speed Cable and Connector Cable Assy, Adapter, HDMI-A HEAC to EDID (415-0028-000) |
Part No.640-0862-300Qty. 1 - HDMI Type-A 2.1 Receptacle Adapter ．10 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ．1 - 8 Position Low Speed Cable and Connector |
 |

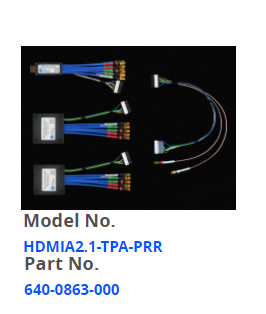

Model No.HDMIA2.1-TPA-PRRQty. 1 - HDMI Type-A 2.1 Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Cable Assy, Adapter, HDMI-A HEAC to EDID (415-0028-000) |
Part No.640-0863-000Qty. 2 - HDMI Type-A 2.1 Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector |
 |
Model No.HDMIA2.1-TPA-RRQty. 2 - HDMI Type-A 2.1 Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector
|
Part No.640-0864-000
|
 |

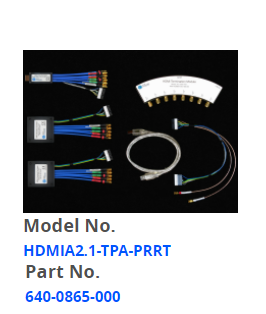

Model No.HDMIA2.1-TPA-PRRTQty. 1 - HDMI Type-A 2.1 Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector ．Cable Assy, Adapter, HDMI-A HEAC to EDID (415-0028-000) |
Part No.640-0865-000Qty. 2 - HDMI Type-A 2.1 Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Qty. 1 - HDMI Termination Board Qty. 1 - 3FT USB Type-A to Type-B Cable (p/n 420-0001-000) |
