DataComm
SFP PLUS
The SFP+ 40Gbps HCB and MCB test fixture kit will facilitate SFP+ 40Gbps host and device compliance testing using our SFP+ 40Gbps Host Compliance Board (HCB) test fixture and our Module Complaince Board (MCB) test fixture.
 |
Model No.50 Ohm Male SMA RF Terminator KitsQty. 4 - DC Block SMA M-F .22uF,10ps, 7KHz to 26.0GHz Kit |
Part No.490-0011-004 |
 |
Model No.50 Ohm Female SMA RF Terminator KitsQty. 4 - 50 Ohm Female SMA RF Terminators DC to 18GHz Kit |
Part No.490-0012-004 |
 |

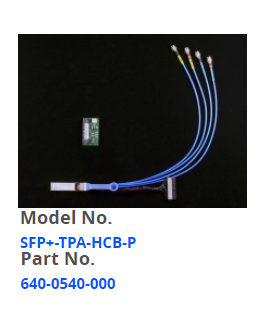

Model No.SFP+-TPA-HCB-PQty. 1 - SFP+ Plug Adapter ．4 - High Performance Phase Aligned 16" Adapter Coaxial Cables w/ Male SMAs ．1 - 12 Position Low Speed Cable and Connector
|
Part No.640-0540-000Qty. 1 - SFP+ HCB Switch Module (p/n 110-1049-000) |
 |

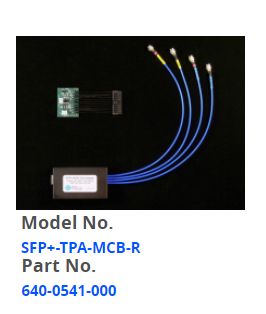

Model No.SFP+-TPA-MCB-RQty. 1 - SFP+ Receptacle Adapter ．4 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ．1 - 12 Position Low Speed Connector
|
Part No.640-0541-000Position Low Speed Cable (p/n 110-1074-000) |
 |
Model No.SFP+-TPA-PRQty. 1 - SFP+ Plug Adapter ．4 - High Performance Phase Aligned 16" Adapter Coaxial Cables w/ Male SMAs ．1 - 12 Position Low Speed Cable and Connector Qty. 1 - SFP+ HCB Switch Module (p/n 110-1049-000) |
Part No.640-0542-000Qty. 1 - SFP+ Receptacle Adapter ．4 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ．1 - 12 Position Low Speed Connector Qty. 1 - SFP+ MCB Switch Module w/ 12 Position Low Speed Cable (p/n 110-1074-000) |
 |
Model No.SFP+-TPA-HCB-PKQty. 1 - SFP+ Plug Adapter ．4 - High Performance Phase Aligned 16" Adapter Coaxial Cables w/ Male SMAs ．1 - 12 Position Low Speed Cable and Connector |
Part No.640-0543-000Qty. 1 - SFP+ HCB Switch Module (p/n 110-1049-000) ．4 - 50 Ohm SMA Female RF Terminators DC to 18Ghz (p/n 490-0012-000) ．4 - 50 Ohm SMA Male-Female RF DC Blocks 7KHz to 26GHz (p/n 490-0011-000) |
 |
Model No.SFP+-TPA-MCB-RKQty. 1 - SFP+ Receptacle Adapter ．4 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ．1 - 12 Position Low Speed Connector |
Part No.640-0544-000Qty. 1 - SFP+ MCB Switch Module w/ 12 Position Low Speed Cable (p/n 110-1074-000) ．4 - 50 Ohm SMA Female RF Terminators DC to 18Ghz (p/n 490-0012-000) ．4 - 50 Ohm SMA Male-Female RF DC Blocks 7KHz to 26GHz (p/n 490-0011-000)
|
 |
Model No.SFP+-TPA-PRKQty. 1 - SFP+ Plug Adapter ．4 - High Performance Phase Aligned 16" Adapter Coaxial Cables w/ Male SMAs ．1 - 12 Position Low Speed Cable and Connector Qty. 1 - SFP+ Receptacle Adapter ．4 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs ．1 - 12 Position Low Speed Connector
|
Part No.640-0545-000Qty. 1 - SFP+ HCB Switch Module (p/n 110-1049-000) ．4 - 50 Ohm SMA Female RF Terminators DC to 18Ghz (p/n 490-0012-000) ．4 - 50 Ohm SMA Male-Female RF DC Blocks 7KHz to 26GHz (p/n 490-0011-000) Qty. 1 - SFP+ MCB Switch Module w/ 12 Position Low Speed Cable (p/n 110-1074-000) |
