 The QSFP28/QSFP56 Host Compliance Board (HCB) test fixture and our Module Complaince Board (MCB) test fixture supports 100Gbps using NRZ signaling or 200Gbps using PAM4 signaling.




50 Ohm Male SMA RF Terminator Kits

Model No.

50 Ohm Male SMA RF Terminator Kits

．Qty. 4 - 50 Ohm Male SMA RF Terminators DC to 18GHz Kit

Part No.

490-0010-004


DC Block Kits

Model No.

50 Ohm Male SMA RF Terminator Kits

．Qty. 4 - DC Block SMA M-F .22uF,10ps, 7KHz to 26.0GHz Kit

Part No.

490-0011-004
50 Ohm Female SMA RF Terminator Kits

Model No.

50 Ohm Female SMA RF Terminator Kits

．Qty. 4 - 50 Ohm Female SMA RF Terminators DC to 18GHz Kit

Part No.

490-0012-004
QSFP28-TPA100G-HCB-P

Model No.

QSFP28-TPA100G-HCB-P

．Qty. 1 - QSFP28 100Gbps Plug Adapter
．16 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Female SMAs
．1 - 12 Position Low Speed Cable and Connector

Part No.

640-0820-000
QSFP28-TPA100GM-HCB-P

Model No.

QSFP28-TPA100GM-HCB-P

．Qty. 1 - QSFP28 100Gbps Plug Adapter
．16 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs
．1 - 12 Position Low Speed Cable and Connector

Part No.

640-0821-000

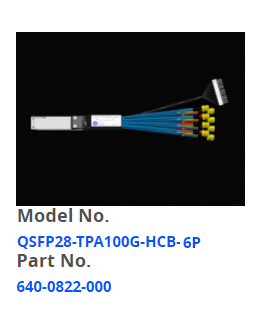

QSFP28-TPA100G-HCB-6P

Model No.

QSFP28-TPA100G-HCB-6P

．Qty. 1 - QSFP28 100Gbps Plug Adapter
．16 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
．1 - 12 Position Low Speed Cable and Connector

Part No.

640-0822-000
QSFP28-TPA100G-MCB-R

Model No.

QSFP28-TPA100G-MCB-R

．Qty. 1 - QSFP28 100Gbps Receptacle Adapter
．16 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
．1 - 12 Position Low Speed Connector

Part No.

640-0823-000

．Qty. 1 - Cable Assembly Micro-fit to Mini-fit (WT p/n 415-0063-000 - Not Shown)
．Qty. 1 - Cable Assembly Micro-fit to Banana (WT p/n 415-0064-000 - Not Shown)
．Qty. 1 - Signal/Power Cable Adapter (WT p/n 415-0069-000 - Not Shown)

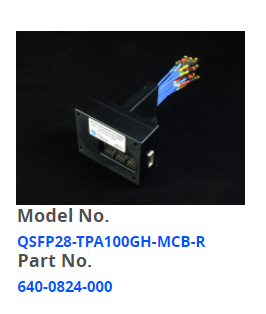

QSFP28-TPA100GH-MCB-R

Model No.

QSFP28-TPA100GH-MCB-R

．Qty. 1 - QSFP28 100Gbps Receptacle Adapter with Heatsink
．16 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
．1 - 12 Position Low Speed Connector

Part No.

640-0824-000

．Qty. 1 - Cable Assembly Micro-fit to Mini-fit (WT p/n 415-0063-000 - Not Shown)
．Qty. 1 - Cable Assembly Micro-fit to Banana (WT p/n 415-0064-000 - Not Shown)
．Qty. 1 - Signal/Power Cable Adapter (WT p/n 415-0069-000 - Not Shown)




QSFP28-TPA100G-PR

Model No.

QSFP28-TPA100G-PR

．Qty. 1 - QSFP28 100Gbps Plug Adapter
．16 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Female SMAs
．1 - 12 Position Low Speed Cable and
Connector

Qty. 1 - QSFP28 100Gbps Receptacle Adapter
．16 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
．1 - 12 Position Low Speed Connector

Part No.

640-0825-000

．Qty. 1 - Cable Assembly Micro-fit to Mini-fit (WT p/n 415-0063-000 - Not Shown)

．Qty. 1 - Cable Assembly Micro-fit to Banana (WT p/n 415-0064-000 - Not Shown)

．Qty. 1 - Signal/Power Cable Adapter (WT p/n 415-0069-000 - Not Shown)
QSFP28-TPA100G-PRR

Model No.

QSFP28-TPA100G-PRR

．Qty. 1 - QSFP28 100Gbps Plug Adapter
．16 - High Performance Phase Aligned
．12" Adapter Coaxial Cables w/ Female SMAs
．1 - 12 Position Low Speed Cable and Connector

．Qty. 2 - QSFP28 100Gbps Receptacle Adapter
．32 - High Performance Phase Aligned
．6" Adapter Coaxial Cables w/ Female SMAs
．2 - 12 Position Low Speed Connector

Part No.

640-0826-000

．Qty. 1 - Cable Assembly Micro-fit to Mini-fit (WT p/n 415-0063-000 - Not Shown)

．Qty. 1 - Cable Assembly Micro-fit to Banana (WT p/n 415-0064-000 - Not Shown)

．Qty. 1 - Signal/Power Cable Adapter (WT p/n 415-0069-000 - Not Shown)

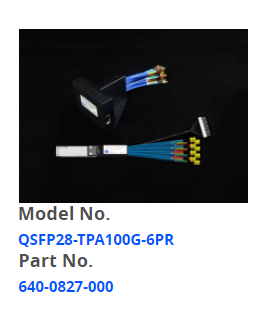

QSFP28-TPA100G-6PR

Model No.

QSFP28-TPA100G-6PR

．Qty. 1 - QSFP28 100Gbps Plug Adapter

．16 - High Performance Phase Aligned
．6" Adapter Coaxial Cables w/ Female SMAs
．1 - 12 Position Low Speed Cable and Connector

Part No.

640-0827-000

．Qty. 1 - Cable Assembly Micro-fit to Mini-fit (WT p/n 415-0063-000 - Not Shown)
．Qty. 1 - Cable Assembly Micro-fit to Banana (WT p/n 415-0064-000 - Not Shown)
．Qty. 1 - Signal/Power Cable Adapter (WT p/n 415-0069-000 - Not Shown)


QSFP28-TPA100G-MCB-RR

Model No.

QSFP28-TPA100G-MCB-RR

．Qty. 2 - QSFP28 100Gbps Receptacle Adapter
．32 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
．2 - 12 Position Low Speed Connector

Part No.

640-0828-000

．Qty. 1 - Cable Assembly Micro-fit to Mini-fit (WT p/n 415-0063-000 - Not Shown)
．Qty. 1 - Cable Assembly Micro-fit to Banana (WT p/n 415-0064-000 - Not Shown)
．Qty. 1 - Signal/Power Cable Adapter (WT p/n 415-0069-000 - Not Shown)


QSFP28-TPA100GH-MCB-RR

Model No.

QSFP28-TPA100GH-MCB-RR

．Qty. 2 - QSFP28 100Gbps Receptacle Adapter With Heastink
．32 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
．2 - 12 Position Low Speed Connector



Part No.

640-0829-000

．Qty. 1 - Cable Assembly Micro-fit to Mini-fit (WT p/n 415-0063-000 - Not Shown)
．Qty. 1 - Cable Assembly Micro-fit to Banana (WT p/n 415-0064-000 - Not Shown)
．Qty. 1 - Signal/Power Cable Adapter (WT p/n 415-0069-000 - Not Shown)
