HDMI
HDMI TYPE-A HEAC
The HDMIA-TPA-HPRRCE test adapter kit or test fixture kit facilitate HDMI v1.4 CTS Source and Sink compliance testing. The fixture kit also facilitates HDMI cable testing.
 |
Model No.HDMI-TPA-HPQty. 1 - HDMI Type-A HEAC Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector |
Part No.640-0090-000Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |
Model No.HDMI-TPA-HRQty. 1 - HDMI Type-A HEAC Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector |
Part No.640-0091-000 |
 |
Model No.HDMI-TPA-HCQty. 1 - HDMI Type-A HEAC Calibration Module ．2 - High Performance Phase Aligned 3" Adapter Coaxial Cables w/ Female SMAs ．5 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs |
Part No.640-0092-000 |
 |
Model No.HDMI-TPA-HEQty. 1 - HDMI Type-A HEAC E-EDID PCB ．1 - HDMI E-EDID PROM |
Part No.640-0093-000Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |
Model No.HDMI-TPA-HPRRCEQty. 1 - HDMI Type-A HEAC Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Qty. 2 - HDMI Type-A HEAC Receptacle Adapters ．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 8 Position Low Speed Cable and Connector |
Part No.640-0094-000Qty. 1 - HDMI Type-A HEAC Calibration Module ．5 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - High Performance Phase Aligned 3" Adapter Coaxial Cables w/ Female SMAs Qty. 1 - HDMI Type-A HEAC E-EDID PCB ．1 - HDMI E-EDID PROM Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |
Model No.HDMI-TPA-HCEQty. 1 - HDMI Type-A HEAC Calibration Module ．5 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - High Performance Phase Aligned 3" Adapter Coaxial Cables w/ Female SMAs |
Part No.640-0095-000Qty. 1 - HDMI Type-A HEAC E-EDID PCB ．1 - HDMI E-EDID PROM Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |
Model No.HDMI-TPA-HPCQty. 1 - HDMI Type-A HEAC Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
Part No.640-0096-000Qty. 1 - HDMI Type-A HEAC Calibration Module ．2 - High Performance Phase Aligned 3" Adapter Coaxial Cables w/ Female SMAs ．5 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs |
 |
Model No.HDMI-TPA-HPCEQty. 1 - HDMI Type-A HEAC Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Qty. 1 - HDMI Type-A HEAC E-EDID PCB ．1 - HDMI E-EDID PROM |
Part No.640-0097-000Qty. 1 - HDMI Type-A HEAC Calibration Module ．2 - High Performance Phase Aligned 3" Adapter Coaxial Cables w/ Female SMAs ．5 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |
Model No.HDMI-TPA-HPEQty. 1 - HDMI Type-A HEAC Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector |
Part No.640-0098-000Qty. 1 - HDMI Type-A HEAC E-EDID PCB ．1 - HDMI E-EDID PROM Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |
Model No.HDMI-TPA-HPRQty. 1 - HDMI Type-A HEAC Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector |
Part No.640-0099-000Qty. 1 - HDMI Type-A HEAC Receptacle Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |
Model No.HDMI-TPA-HPRCQty. 1 - HDMI Type-A HEAC Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables ．1 - 8 Position Low Speed Cable and Connector Qty. 1 - HDMI Type-A HEAC Receptacle Adapters ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector |
Part No.640-0100-000Qty. 1 - HDMI Type-A HEAC Calibration Module ．5 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - High Performance Phase Aligned 3" Adapter Coaxial Cables w/ Female SMAs Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |

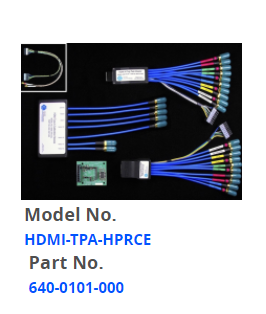

Model No.HDMI-TPA-HPRCEQty. 1 - HDMI Type-A HEAC Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Qty. 1 - HDMI Type-A HEAC Receptacle Adapters ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector |
Part No.640-0101-000Qty. 1 - HDMI Type-A HEAC Calibration Module ．5 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - High Performance Phase Aligned 3" Adapter Coaxial Cables w/ Female SMAs Qty. 1 - HDMI Type-A HEAC E-EDID PCB ．1 - HDMI E-EDID PROM Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |
Model No.HDMI-TPA-HPREQty. 1 - HDMI Type-A HEAC Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Qty. 1 - HDMI Type-A HEAC E-EDID PCB ．1 - HDMI E-EDID PROM |
Part No.640-0102-000Qty. 1 - HDMI Type-A HEAC Receptacle Adapters ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |
Model No.HDMI-TPA-HPRRQty. 1 - HDMI Type-A HEAC Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector |
Part No.640-0103-000Qty. 2 - HDMI Type-A HEAC Receptacle Adapters ．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 8 Position Low Speed Cable and Connector Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |

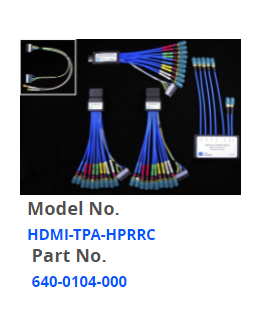

Model No.HDMI-TPA-HPRRCQty. 1 - HDMI Type-A HEAC Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Qty. 2 - HDMI Type-A HEAC Receptacle Adapters ．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 8 Position Low Speed Cable and Connector |
Part No.640-0104-000Qty. 1 - HDMI Type-A HEAC Calibration Module ．5 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - High Performance Phase Aligned 3" Adapter Coaxial Cables w/ Female SMAs Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |
Model No.HDMI-TPA-HPRREQty. 1 - HDMI Type-A HEAC Plug Adapter ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector Qty. 1 - HDMI Type-A HEAC E-EDID PCB ．1 - HDMI E-EDID PROM |
Part No.640-0105-000Qty. 2 - HDMI Type-A HEAC Receptacle Adapters ．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 8 Position Low Speed Cable and Connector Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |
Model No.HDMI-TPA-HRCQty. 1 - HDMI Type-A HEAC Receptacle Adapters ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector |
Part No.640-0106-000Qty. 1 - HDMI Type-A HEAC Calibration Module ．5 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - High Performance Phase Aligned 3" Adapter Coaxial Cables w/ Female SMAs |
 |
Model No.HDMI-TPA-HRCEQty. 1 - HDMI Type-A HEAC Receptacle Adapters ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector ．Qty. 1 - HDMI Type-A HEAC E-EDID PCB 1 - HDMI E-EDID PROM |
Part No.640-0107-000Qty. 1 - HDMI Type-A HEAC Calibration Module ．5 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/Female SMAs ．2 - High Performance Phase Aligned 3" Adapter Coaxial Cables w/Female SMAs Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |

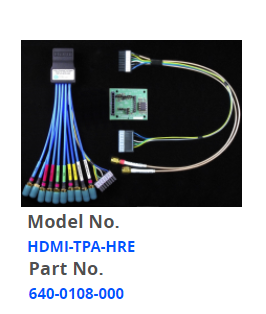

Model No.HDMI-TPA-HREQty. 1 - HDMI Type-A HEAC Receptacle Adapters ．10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．1 - 8 Position Low Speed Cable and Connector |
Part No.640-0108-000Qty. 1 - HDMI Type-A HEAC E-EDID PCB ．1 - HDMI E-EDID PROM Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |
Model No.HDMI-TPA-HRRQty. 2 - HDMI Type-A HEAC Receptacle Adapters ．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 8 Position Low Speed Cable and Connector |
Part No.640-0109-000 |
 |
Model No.HDMI-TPA-HRRCQty. 2 - HDMI Type-A HEAC Receptacle Adapters ．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 8 Position Low Speed Cable and Connector |
Part No.640-0110-000Qty. 1 - HDMI Type-A HEAC Calibration Module ．5 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - High Performance Phase Aligned 3" Adapter Coaxial Cables w/ Female SMAs |
 |
Model No.HDMI-TPA-HRRCQty. 2 - HDMI Type-A HEAC Receptacle Adapters ．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 8 Position Low Speed Cable and Connector Qty. 1 - HDMI Type-A HEAC E-EDID PCB ．1 - HDMI E-EDID PROM |
Part No.640-0111-000Qty. 1 - HDMI Type-A HEAC Calibration Module ．5 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - High Performance Phase Aligned 3" Adapter Coaxial Cables w/ Female SMAs Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
|
|
Model No.HDMI-TPA-HRREQty. 2 - HDMI Type-A HEAC Receptacle Adapters ．20 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs ．2 - 8 Position Low Speed Cable and Connector |
Part No.640-0112-000Qty. 1 - HDMI Type-A HEAC E-EDID PCB ．1 - HDMI E-EDID PROM Qty. 1 - Cable Assy, HDMI-A HEAC to EDID (415-0028-000) |
 |
Model No.HDMI-TPA-TQty. 1 - HDMI Termination Module Qty. 1 - 3FT USB Type-A to Type-B Cable (p/n 420-0001-000) |
Part No.640-0408-000 |
 |
Model No.HDMI-EDID-EMQty. 1 - HDMI EDID Sink Emulator Module ．3FT USB Type-A to Type-B Cable (p/n 420-0001-000) |
Part No.640-0905-100．USB Flash Drive with HDMI EDID Emulator Software |
 |
Model No.HDMI-EDID-EMSQty. 1 - HDMI EDID Source Emulator Module 3FT USB Type-A to Type-B Cable (p/n 420-0001-000) |
Part No.640-0906-100USB Flash Drive with HDMI EDID Emulator Software |
 |
Model No.HDMI-EDID-EMSSQty. 1 - HDMI EDID Emulator Module 3FT USB Type-A to Type-B Cable (p/n 420-0001-000) |
Part No.640-0907-100USB Flash Drive with HDMI EDID Emulator Software |
 |
Model No.HDMI-EDID-EMSISoftware to upgrade from a HDMI-EDID-EMS to a HDMI-EDID-EMSS, adds the Sink emulating software |
Part No.640-0908-000 |
 |
Model No.HDMI-EDID-EMSOSoftware to upgrade from a HDMI-EDID-EM to a HDMI-EDID-EMSS, adds the Source emulating software |
Part No.640-0909-000 |
