IQSuite Software on All IQ System
IQsuite測試軟體針對產測需求提供WiFi實體層發射接收測試的完整功能，包含所有頻率通道、資料傳輸率以及不同的通道頻寬。
IQsuite可產生ODM廠商所需要的特性分析，以及品質確認等所需之量測資料。本軟體也提供彈性化的測試條件及標準化的測試記錄格式（如Excel)，期帶給客戶更完整的軟體功能，方便產線生產記錄。
系統特色
• Comprehensive Receiver and Transmitter Parametric Test Individually Designed for the Latest WiFi Chipsets
• Cost and Time Savings: Reduces Verification, Charaterization and Validation Testing from Days to Hours
• Supports Latest MIMO WiFi Chipsets Lncludes Both 802.11a/b/g Legacy and 802.11n MIMO Tests
• Support All IQ Test System Platform
支援晶片
Atheros、Broadcom、CSR、Marvell、Metalink、MTK、Philips、Ralink、Realtek、TI、VIA、Quantenna...
|
IQsuite test GUI screen
|
Measurements • Calibration - Crystal Calibration - Output Power Calibration - EEPROM writing • Transmission Verification - Average power - EVM - Frequency Error - Spectrum Mask • Receive Verification - Sensitivity/ RX PER |

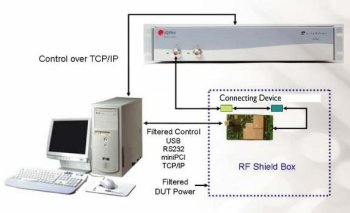

Test Structure
詢問更詳細內容與儀器規格，請洽業務專線聯絡 Toll Free Srevice:0800-525633 / E-Mail: service@acesolution.com.tw
