太赫茲光學鏡片系列

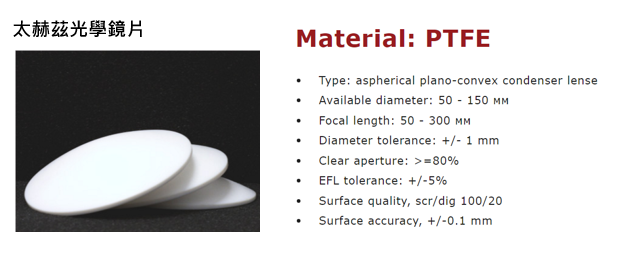

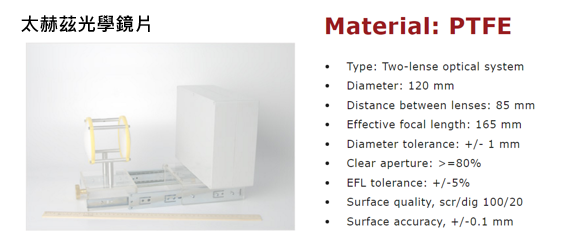

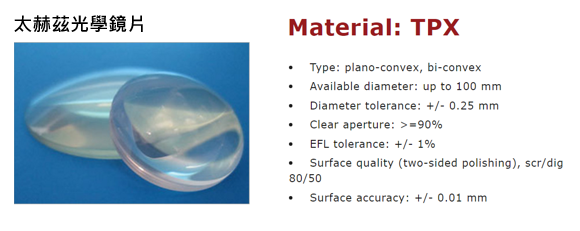

As part of a ready-made solution for terahertz imaging, Terasense offers TPX and PTFE lenses and optical systems, which operate in the THz range. Plastic plano-raised lenses are made of Polytetrafluoroethylene (Virgin White PTFE, Teflon®), which has a low dielectric constant of approximately 1.96 @ 520 GHz with an index of refraction of 1.4. The THz range can be communicated as the recurrence scope of 300 GHz to 10 THz or the wavelength scope of 30 μm to 1 mm.
Copyright @ 2012 Advanced Comm. Engineering Solution Co., Ltd.
詢問更詳細內容與儀器規格，請洽業務專線聯絡 Toll Free Srevice:0800-525633 / E-Mail: service@acesolution.com.tw
