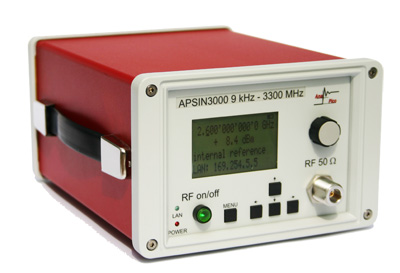

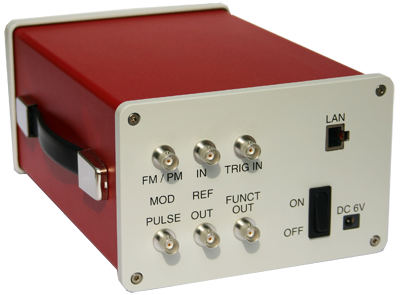

APSIN3000 (Product Brief, Data Sheet)
9 kHz to 3300 MHz Analog Signal Generator
The APSIN3000 is a unique truly handheld low-noise and fast-switching RF signal generator.It is specially designed for applications where excellent signal quality is required. The fan-less design consumes only 10 watts and guarantees low emissions.Standard configuration includes high-stability OCXO and much more, guaranteing an excellent price to performance ratio. A purely PC controlled version for ATE is also available.
Key Specifications:
-
9 kHz to 3300 MHz in 0.001 Hz resolution
-
-135 to +13 dBm in 0.1 dB resolution
-
-130 dBc/Hz at 1 GHz carrier (20 kHz offs)
-
1 ms switching time
-
DC Power only 10 Watts
-
Weight: 2.5 kgs total
Features & Applications:
-
Internal battery option
-
Extensive trigger and sweeping capabilities for ATE
-
Remote p rogramming via standard SCPI or GUI
-
AM; FM/PM, pulse modulation
-
Lock to variable external reference
