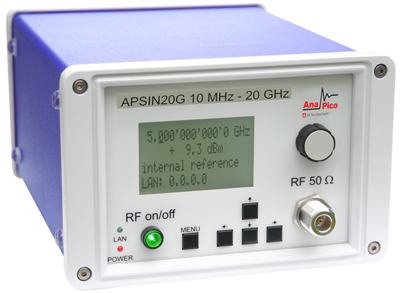

APSIN 20G (Product Brief, Data Sheet)
10 MHzto 20 GHz+ Microwave Signal Generator
The APSIN20G is a low noise microwave signal generator, offering very good phase noise, high dynamic range, fast switching times, and exceptional modulation capabilities.
Key Specifications:
-
10 MHz to 20 GHz in 0.001 Hz resolution
-
-20 to +15 dBm in 0.01 dB resolution (option PE: -90 to + 15 dBm)
-
-108 dBc/Hz at 10 GHz carrier (20 kHz offset)
-
0.2 ms switching time
-
ultra-wideband DCFM
-
AM/PM/fast pulse modulation
-
DC Power peak 18 Watts
-
Weight: 2.5 kgs total
Features & Applications:
-
Internal battery option
-
Extensive trigger and sweeping capabilities for ATE
-
Remote p rogramming via standard SCPI or GUI
-
AM; FM/PM, pulse modulation
-
Lock to variable external reference
