Scalar Network Analyzer (SNA) 純量網路分析儀
許多Frequency Convert的元件或產品, 通常因為量測的方便性, 而選用純量網路分析儀來量測Conversion Gain/Loss 等參數。
Giga-tronics 公司生產的SNA 8003，可以直接替代如Model: 8757 的純量網路分析儀，並可搭配您原有的信號源及配件(Power
Splitter, Bridge, Dector)一起使用。 或者您也可以選用Giga-tronics公司生產的信號源及配件一起使用。
The Giga-tronics 8003 Precision Scalar Analyzer combines a 90dB wide dynamic
range with the accuracy and linearity of a power meter in a single instrument.
Measures active and passive components with power meter accuracy from 10 MHz to
40 GHz. AC and DC detection is available with equal accuracy on the 3 inputs and
standard, high-power, true RMS, low VSWR and triggerable pulse power sensors are
available. Additionally, precision CW return loss bridges are available.
Don't forget to check out the "Compatible Product" for the Power Sensors
compatible to this 8003 Scalar Network Analyzer.
Features
Sensor frequency range from 0.01 to 18, 20, 26.5, or 40 GHz
Dynamic Range: 90 dBm; -70 to +20 dBm CW; -20 to +20 dBm Pulse
Linearity of ±0.02 dB (0.5%) over any 20 dB span
Linearity of ±0.04 dB (1%) over the entire 90 dB span

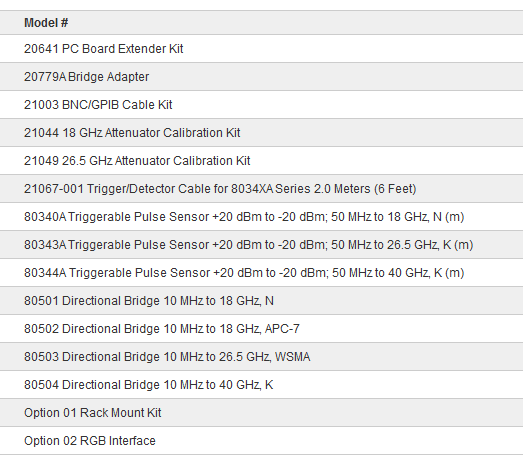

Option
Model 8003 - Scalar Network Analyzer - 10 MHz to 40 GHz
The Giga-tronics 8003 Precision Scalar Analyzer combines a 90dB wide dynamic
range with the accuracy and linearity of a power meter in a single instrument.
Measures active and passive components with power meter accuracy from 10 MHz to
40 GHz. AC and DC detection is available with equal accuracy on the 3 inputs and
standard, high-power, true RMS, low VSWR and triggerable pulse power sensors are
available. Additionally, precision CW return loss bridges are available.
Don't forget to check out the "Compatible Product" for the Power Sensors
compatible to this 8003 Scalar Network Analyzer.
Features
Sensor frequency range from 0.01 to 18, 20, 26.5, or 40 GHz
Dynamic Range: 90 dBm; -70 to +20 dBm CW; -20 to +20 dBm Pulse
Linearity of ±0.02 dB (0.5%) over any 20 dB span
Linearity of ±0.04 dB (1%) over the entire 90 dB span
Option
• Datasheet -
8003 Precision Scalar Analyzer
• Manual -
8003 Scalar Network Analyzer
• Catalog -
Giga-tronics Instrumentation Short-form Catalog
