TeraView EOTPR series(Semiconductor Packaging Inspection)/TeraPluse Lx

Electro Optical Terahertz Pulse Reflectometry(EOTPR)

Electro Optical Terahertz Pulse Reflectometry (EOTPR) is an innovative time domain reflectometry (TDR) system that has been successfully developed by Intel Corporation and TeraView Ltd.

Electro Optical Terahertz Pulse Reflectometry It allows THz TDR analysis of semiconductor packages and offers a step change in resolution compared to conventional millimeter wave systems. The injected terahertz pulse reflects off faults within the device under test (DUT) locating their position with accuracy of 5μm.

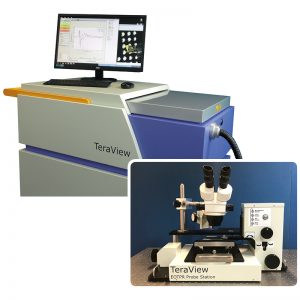

EOTPR 3000 Core+ Probe Station
	Electro Optical Terahertz Pulse Reflectometry (EOTPR) is an innovative time domain reflectometry (TDR) system that has been successfully developed by Intel Corporation and TeraView Ltd. It allows THz TDR analysis of semiconductor packages and offers a step change in resolution compared to conventional millimeter wave systems. The injected terahertz pulse reflects off faults within the device under test (DUT) locating their position with accuracy of 5 μm.
EOTPR 4000 Electro Optical Terahertz Pulse Reflectometry: The world’s fastest and most accurate fault isolation system
	The EOTPR 4000 system is configured with an automated probe station which is capable of placing the probe tip to +/- 5 μm precision, while maintaining the EOTPR’s world leading sub-5 μm fault isolation accuracy. This combination allows users to directly probe TSV tips and copper pillars.
EOTPR 5000 Electro Optical Terahertz Pulse Reflectometry
	The EOTPR 5000 utilizes TeraView’s proprietary EOTPR technology to detect interconnect quality with the full automation, rapid measurement speed and high throughput required in today’s high volume manufacturing environments. Moreover, it is the only IC interconnect inspection technique currently available that operates at the forefront of location accuracy and detection sensitivity.

TeraPulse 4000 – THz Pulsed Imaging and Spectroscopy

Contained within a single box, the TeraPulse 4000 is a lighter, smaller bench- top unit capable of performing Terahertz (THz) transmission and reflection measurements compatible with all of TeraView's existing modules. Using TeraView's proprietary semiconductor based technology and offering market leading signal-to-noise, the TeraPulse offers a quality signal up to 4 THz, typically 4.5 THz. The option of extending this beyond 7 THz also exists.

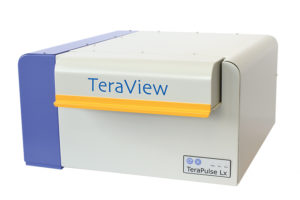

TeraPulse Lx – Future-proof your research with the TeraPulse Lx Modular System
	The TeraPulse Lx system is the latest addition to TeraView’s world-leading product family for terahertz analysis. It has been designed to meet the needs of the researcher in imaging or spectroscopy applications.
